ESP-07S Wi-Fi MODÜL
Stok Kodu
254.05.04.04
159,36 TL

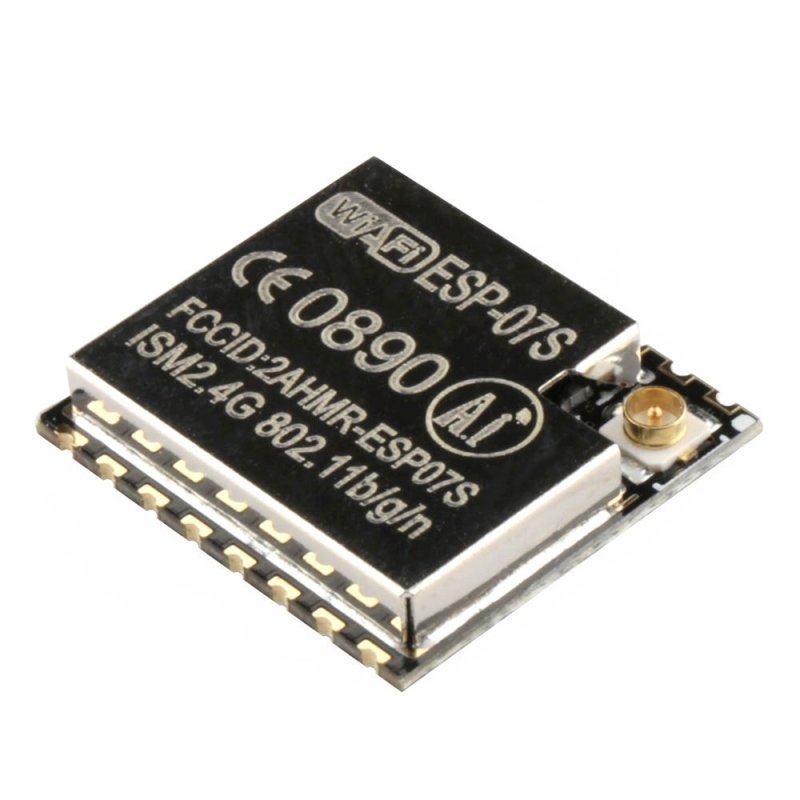

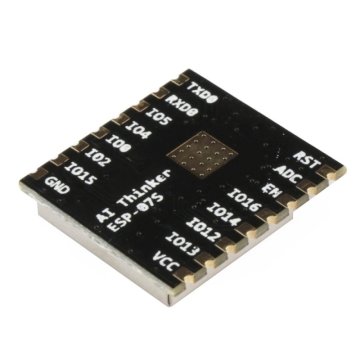

ESP8266 ESP-07S Wi-Fi Modül
| Package | : SMD-16 |
| Size | : 17*16*3 (±0.1)mm |
| SPI Flash | : Default 32Mbit |
| Interface | : UART/GPIO/ADC/PWM |
| Frequency Range | : 2412 ~ 2484MHz |
| Antenna | : IPEX |
| Power Supply | : Voltage 3.0V ~ 3.6V , Current >300mA |
|
– The smallest 802.11b/g/n Wi-Fi SOC module – Low power 32-bit CPU, can also serve as the application processor – Up to 160MHz clock speed – Built-in 10 bit high precision ADC – Supports UART/GPIO/IIC/PWM/ADC – SMD-16 package for easy welding – Integrated Wi-Fi MAC/BB/RF/PA/LNA – Deep sleep current as low as 20uA – Embedded lwIP protocol stack – Supports STA/AP/STA + AP operation mode – Support Smart Config/AirKiss technology – UART baudrate up to 4Mbps – General AT commands can be used quickly – Supports remote firmware upgrade (FOTA)
|
Bu ürüne ilk yorumu siz yapın! LÜTFEN Sorularınızı bu alana yazmayınız. Sorularınız için info@elektrovadi.com
