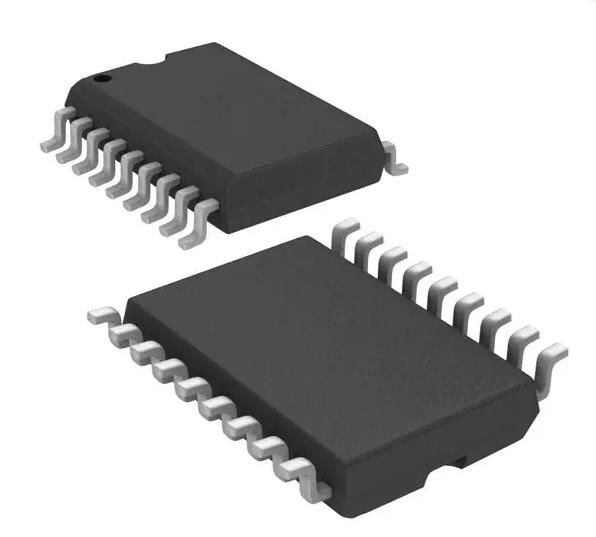

MCP2510T-E/SO CANbus Controller CAN 2.0 SPI Interface 18-SOIC
Stok Kodu
265.01.05.02
197,82 TL
MCP2510
Stand-Alone CAN Controller with SPI Interface
• Implements Full CAN V2.0A and V2.0B at 1 Mb/s:
- 0 - 8 byte message length
- Standard and extended data frames
- Programmable bit rate up to 1 Mb/s
- Support for remote frames
- Two receive buffers with prioritized message
storage
- Six full acceptance filters
- Two full acceptance filter masks
- Three transmit buffers with prioritization and
abort features
- Loop-back mode for self test operation
• Hardware Features:
- High Speed SPI Interface
(5 MHz at 4.5V I temp)
- Supports SPI modes 0,0 and 1,1
- Clock out pin with programmable prescaler
- Interrupt output pin with selectable enables
- ‘Buffer full’ output pins configureable as interrupt
pins for each receive buffer or as general
purpose digital outputs
- ‘Request to Send’ input pins configureable as
control pins to request immediate message
transmission for each transmit buffer or as
general purpose digital inputs
- Low Power Sleep mode
• Low power CMOS technology:
- Operates from 3.0V to 5.5V
- 5 mA active current typical
- 10 μA standby current typical at 5.5V
• 18-pin PDIP/SOIC and 20-pin TSSOP packages
• Temperature ranges supported:
Description
The Microchip Technology Inc. MCP2510 is a Full Controller
Area Network (CAN) protocol controller implementing
CAN specification V2.0 A/B. It supports CAN
1.2, CAN 2.0A, CAN 2.0B Passive, and CAN 2.0B
Active versions of the protocol, and is capable of transmitting
and receiving standard and extended messages.
It is also capable of both acceptance filtering
and message management. It includes three transmit
buffers and two receive buffers that reduce the amount
of microcontroller (MCU) management required. The
MCU communication is implemented via an industry
standard Serial Peripheral Interface (SPI) with data
rates up to 5 Mb/s.
Package Types
- Industrial (I): -40°C to +85°C
- Extended (E): -40°C to +125°C
