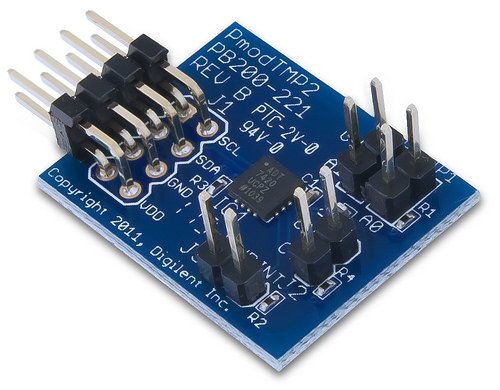

Pmod TMP2 TEMPERATURE SENSOR

Pmod TMP2

TEMPERATURE SENSOR

P/N:410-221

The Pmod TMP2 is an ambient temperature sensor powered by the Analog Devices^® ADT7420. Through the I²C interface, users may appreciate a resolution of 0.0078°C through 16 bits of data.

ÖZELLİKLERİ:

• 16-bit ambient temperature sensor
• Typical accuracy better than 0.25ºC
• 240 ms continuous conversion time
• Programmable over and under-temperature control pins
• No calibration required
• Small PCB size for flexible designs 1.0" × 0.8” (2.5 cm × 2.0 cm)
• 2×4-pin connector with I2C interface
• Follows Digilent Pmod Interface Specification
• Library and example code available in resource center
