Quectel MC60 GSM/GPRS+GNSS Modül

Quectel MC60 GSM/GPRS+GNSS Modül

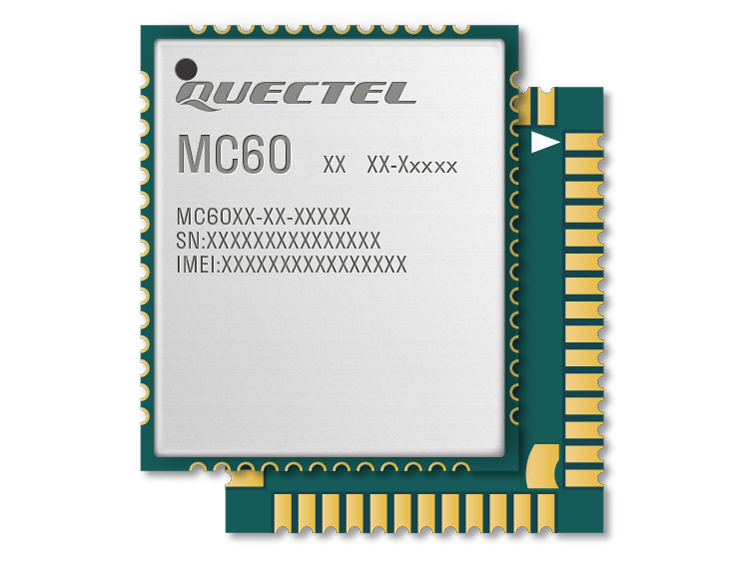

MC60 Quad-band GSM/GPRS modülü ile GNSS uydu navigasyon teknolojisi birleştirilmiş, LCC kılıfı ile kolay lehimlenebilen bir modüldür.

2G yonga setinin son sürümü temel alınarak dizayn edilmiş, SMS ve veri iletimi ile ses servislerinin optimum şekilde çalışması tasarlanmıştır.

Özellikler

• Quad-Band 850/900/1800/1900 MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
  • Class 4 (2 W @ 850/900 MHz)
  • Class 1 (1 W @ 1800/1900 MHz)
• Boyutlar: 18.7 x 16.0 x 2.1 mm
• Ağırlık: 1.3 g
• Control via AT commands (GSM 07.07, 07.05 and other enhanced AT commands)
• Besleme gerilimi aralığı: 3.3 ~ 4.6V (4.0V Tip)
• Düşük güç harcaması: 1.2 mA @ DRX=5
• Çalışma sıcaklığı: -40°C ila +85°C

GPRS Data İçin Özellikler

• GPRS Class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes: CS 1, 2, 3, 4
• PPP-stack
• USSD (Unstructured Supplementary Service Data)
• Non Transparent mode
• Protocols:
  • TCP
  • UDP
  • PPP
  • FTP
  • HTTP
  • SMTP
  • CMUX
  • SSL

GSM/GPRS üzerinden SMS İçin Özellikler

• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Ses İçin Özellikler

• Half Rate (HR)
• Full Rate (FR)
• Enhanced Full Rate (EFR)
• Adaptive Multi-Rate (AMR)
• Echo cancellation
• Echo suppression
• Noise reduction

GNSS İçin Özellikler

• Receiver Type:
  • 33 tracking / 99 acquisition / 210 PRN channels
  • GPS L1 Band receiver
  • GLONASS L1 Band receiver C/A code
• Sensitivity:
  • Reacquisition: -161 dBm
  • Acquisition: -149 dBm
  • Tracking: -167 dBm
• Time-to-First-Fix with EASY™:
  • Cold starts: <15s
  • Hot starts: <1s
  • Warm starts: <5s
• Time-to-First-Fix without EASY™:
  • Cold starts: <35s
  • Hot starts: <1s
  • Warm starts: <30s
• Accuracy:
  • Horizontal position: 2.5m CEP
  • Velocity accuracy: 0.1m/s²
• Dynamic Performance:
  • Maximum Altitude: 18000m
  • Maximum Velocity: 515m/s
  • Maximum Acceleration: 4G

Arayüzler

• SIM/USIM: 2.3V / 1.8V
• UART x3
  • 1 UART port
  • 1 Debug port
  • 1 GNSS port
• SD x1
• 2 output channels, 1 input channel
• GSM Antenna pad
• Bluetooth Antenna pad
• GNSS Antenna pad
• Bluetooth 3.0 Profile: SPP / HFP-AG
• RTC x1 (Real Time Clock)
• PCM x1 (Pulse Code Modulation interface)
• ADC x1 (Analog-to-Digital Converter)
• GPIO x1 (General Purpose Input/Output)
