ANALOG DISCOVERY için Breadboard Kartı
Stok Kodu
103.01.02.02
922,27 TL
Analog Discovery Bread Board Kartı

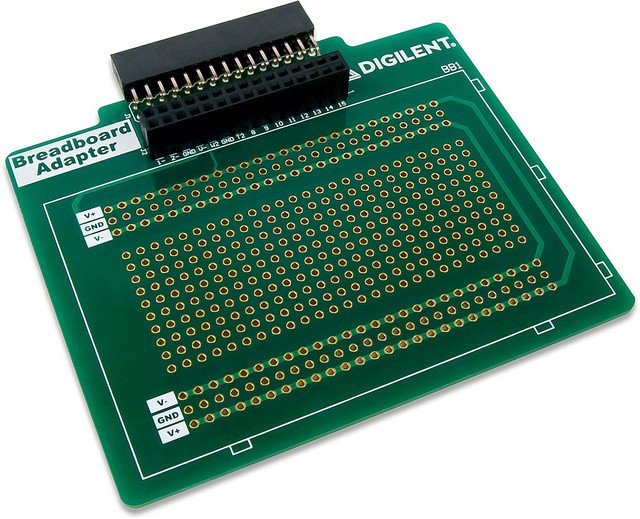

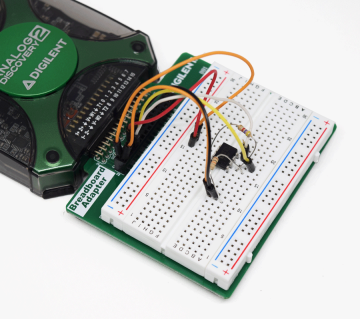

The Breadboard Adapter is intended to be used with the Analog Discovery 2 (Analog Discovery) to
provide a prototyping surface with a secure connection. It provides a female header to pass through all connections from
the Analog Discovery 2 (Analog Discovery) as well as a prototyping surface.
It provides a female header to pass through all connections from the Analog Discovery 2 as well as a prototyping surface.
The PCB provides two power rails directly routed from the V+ and V- pins on the Analog Discovery. Components and wires
can be soldered to the prototyping surface and power rails. Alternatively, the half-sized breadboard can be affixed
(permanently) to the adapter to provide connection
Features
-
Protoboard area consists of twenty-six rows of 10 plated through-holes
-
Two 26 hole V+, V-, and GND rails routed from the 30-pin connector
-
30-pin female headers pass through all signals from the Analog Discovery
-
One half-sized solderless breadboard is included
-
Provides an alternative to the flywires for Analog Discovery

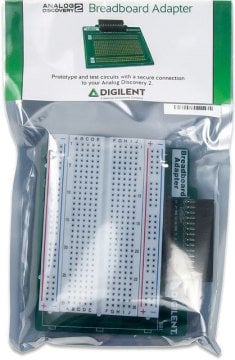

Package Content

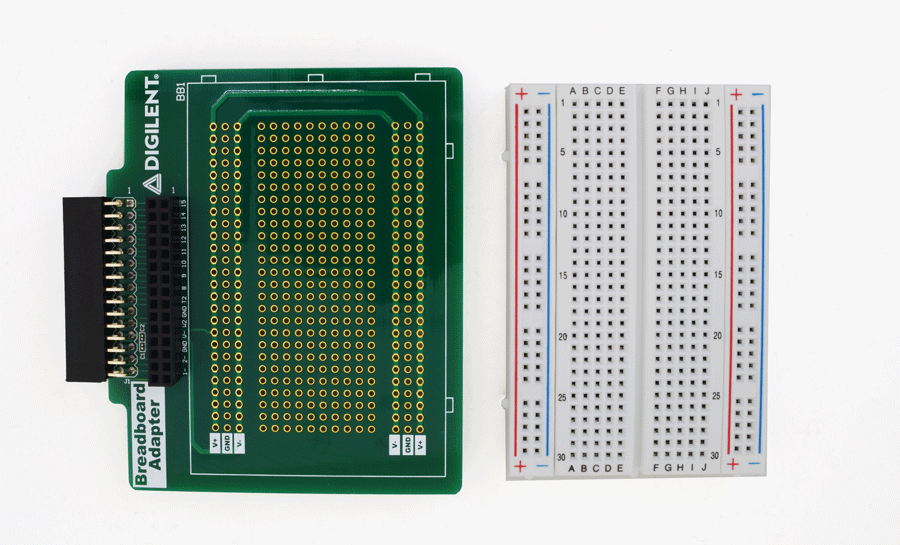

Breadboard Adapter + Bread Board
