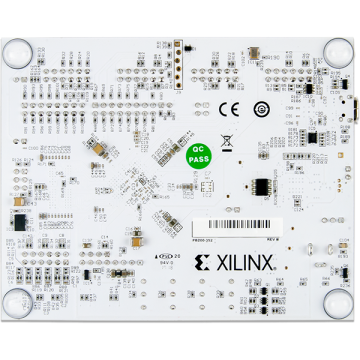

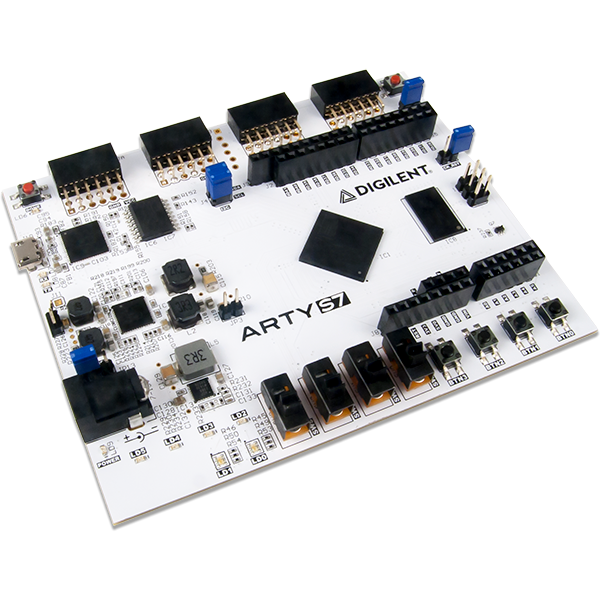

Arty S7-50 FPGA Geliştirme Kartı
The Arty S7-50 board features new Xilinx Spartan-7 FPGA and is the latest member of the Arty family for Makers and Hobbyists.
The Spartan-7 FPGA offers the most size, performance, and cost-conscious design engineered with the latest technologies from Xilinx and is fully compatible with Vivado Design Suite. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Use the dual row Arduino® connectors to mount one of the hundreds of hardware compatible shields available, or use the Pmod ports with Digilent's pre-made Pmod IP blocks for a more streamlined design experience. Arty S7-50 was designed to be MicroBlaze soft processor ready and comes out of the box ready to use with Xilinx's WebPACK licensing. Additionaly, with the on-chip analog-to-digital converter, users can configure up dual conversion channels at 12 bits of resolution on Arty S7-50
| Arty S7-25 | Arty S7-50 | |
| FPGA Part | XC7S25-CSGA324 | XC7S50-CSGA324 |
| 1 MSPS On-chip ADC | Yes | Yes |
| Logic Cells | 23,360 | 52,160 |
| Slices | 3,650 | 8,150 |
| Flip-Flops | 29,200 | 65,200 |
| Block RAM (kbits) | 1,620 | 2,700 |
| Clock Management Tiles | 3 | 5 |
| DSP Slices | 80 | 120 |
-
Internal clock speeds exceeding 450MHz;
-
On-chip analog-to-digital converter (XADC).
-
Programmable over JTAG and Quad-SPI Flash
-

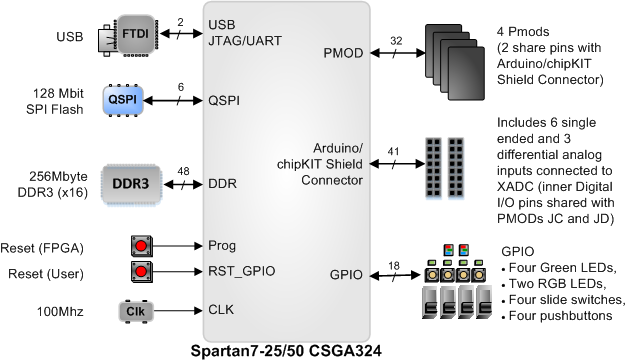

System Features:
-
256 MB DDR3L with a 16-bit bus @ 650 MHz
-
128 Mbits Quad-SPI Flash
-
100 MHz External Clock
-
USB-JTAG Programming circuitry (USB Micro cable required, NOT INCLUDED).
-
Powered from USB or any 7V-15V source
-
-
System Connectivity:
-
USB-UART Bridge
-
-
Interaction and Sensory Devices
-
4 Switches
-
4 Buttons
-
1 Board Reset Button
-
1 FPGA Reset Button
-
4 Green LED
-
2 RGB LEDs
-
-
Expansion Connectors:
-
Arduino/chipKIT Shield connector
- Arty S7-50
- Digilent cardboard packaging with protective foam
- Vivado Design Suite voucher not included - Vivado Design Suite Edition is available for free download
