DE23-Lite Development Kit
DE23-Lite Development Kit
The DE23-Lite is a compact and cost-effective development board powered by the Altera Agilex™ 3 FPGA, purpose-built for vision, digital logic, robotics, and embedded system design. Featuring onboard SDRAM, HDMI output, rich I/O headers, integrated ADC, and user interface components, the board provides a robust and versatile platform for both education and prototyping.
With essential connectivity—including USB Type-C, GPIO, switches, LEDs, and 7-segment displays—the DE23-Lite enables developers and students to quickly implement and test real-world designs. It offers an ideal balance of simplicity, performance, and power efficiency, making it well-suited for image/video processing, embedded vision, classroom instruction, and FPGA edge applications.
The DE23-Lite extends the capabilities of the previous DE10-Lite by offering upgraded I/O flexibility, improved peripheral integration, and the benefits of a modern Agilex 3 architecture—providing greater scalability for next-generation embedded vision development, educational and prototyping needs.
DE23-Lite Specifications
General
| FPGA Device | Agilex 3 A3CZ135BB18AE7S |
|---|---|
| Logic Elements | 135,110 Logic Elements |
| Embedded Memory | 6.89 Mbit M20K, 1.4 Mbit MLAB |
| Multipliers | 368 × 18×19 Multipliers |
| PLL Resources | 4 I/O PLL, 8 Fabric I/O PLL |
| Programming & Configuration | On-Board USB Blaster III (Type-C USB connector) ASx4 Mode with 128 Mbit QSPI Flash |
| Memory Device | 64 MB SDRAM, x32-bit data bus |
| Communication | UART |
| Display | HDMI Output with Audio |
| Expansion Connectors | 2×5 ADC Header One 2×20 GPIO Connector (3.3V) |
| User Interface | 10 LEDs 10 Slide Switches 6 × 7-Segment Displays 4 Push Buttons |
| Power Input | 5V DC |
Block Diagram
Connectivity
Connect to LT24
Connect to D8M
Connect to SMK
Connect to RFS2
Board Layout

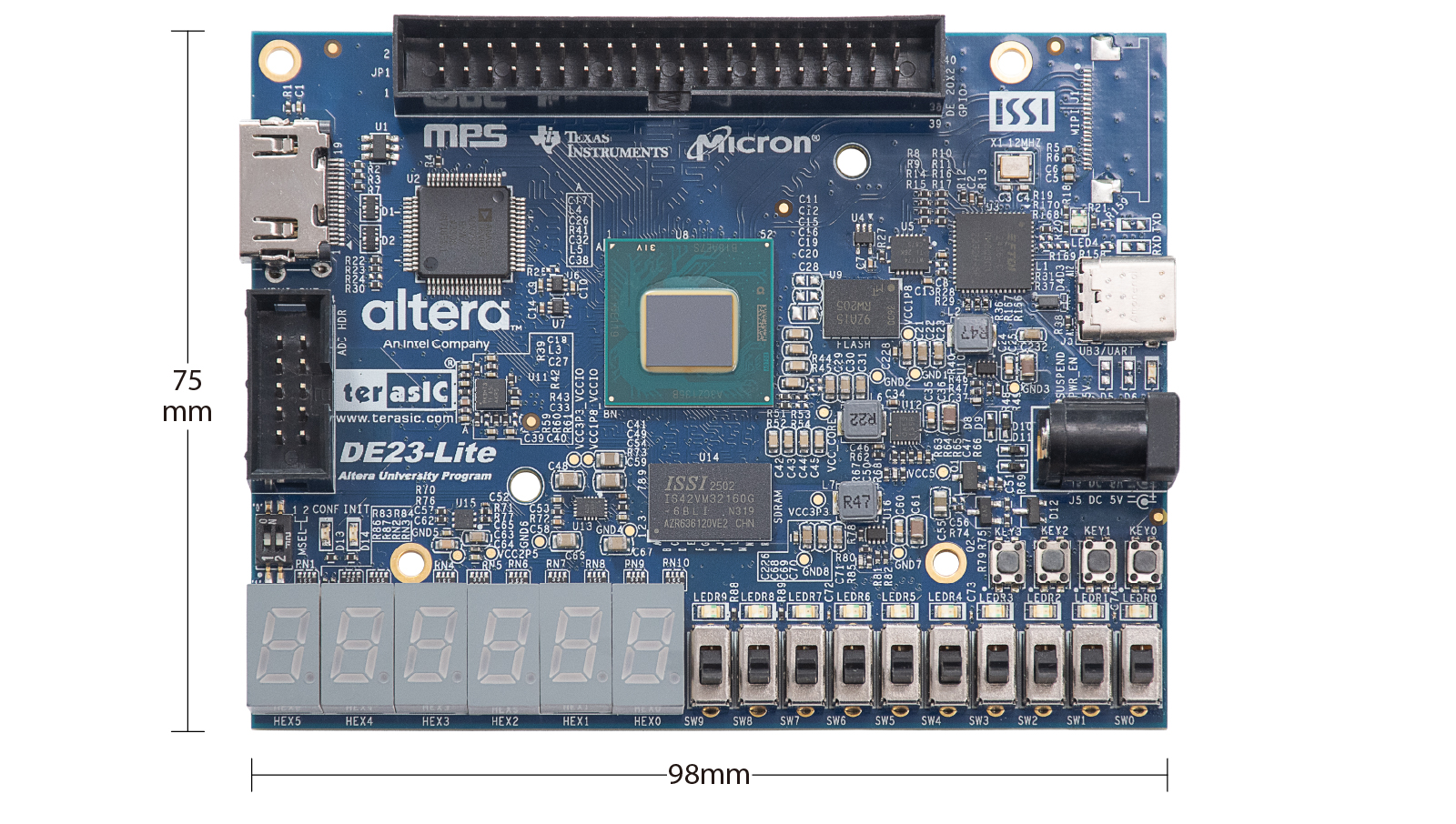

Board Size

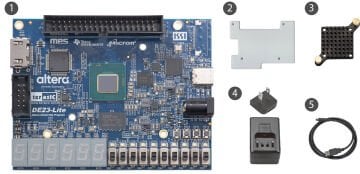

Kit Contents
- DE23-Lite Board
- Acrylic (Installed)
- Heatsink (Installed)
- DC 5V / 2A Power Supply
- Type-C USB Cable
