DE25-Nano Development and Education Board
DE25-Nano Development and Education Board

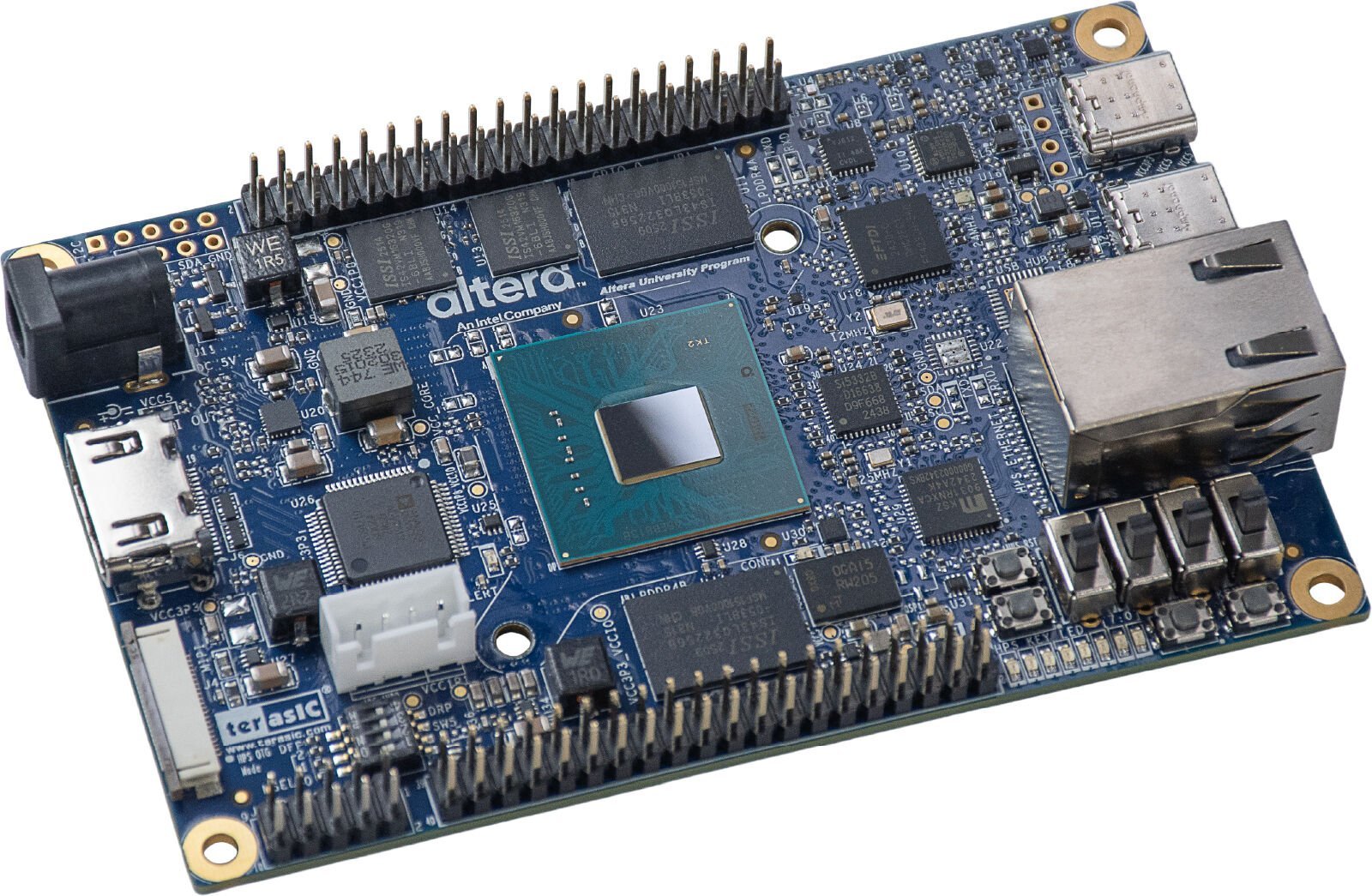

The DE25-Nano is a next-generation FPGA development board that brings Agilex™ 5 performance into the palm of your hand. Building upon the widespread adoption of the DE10-Nano, the DE25-Nano upgrades nearly every dimension: from a 138K-LE Agilex™ 5 FPGA, onboard 2GB LPDDR4, and USB-Blaster III, to an enhanced dual-cluster ARM Cortex-A76/A55 HPS architecture — all while maintaining the same compact form factor. Whether you're developing AI models, vision pipelines, or control systems, the DE25-Nano offers a modern hardware foundation for real-time processing at the edge.
What truly sets the DE25-Nano apart is its versatile I/O and production-ready architecture — with support for HDMI, MIPI, ADC, GPIO, and shared HPS/FPGA memory. This makes it not only a powerful dev kit for rapid prototyping, but also a reliable hardware platform ready to be adopted in real-world applications — from embedded vision, robotics to signal processing and edge analytics. Paired with Terasic’s rich ecosystem of daughter cards, the DE25-Nano enables fast iteration and scalable deployment across industries — bridging the gap between development and production, education and enterprise.
DE25-Nano
General
| FPGA | A5EB013BB23BE4SCS (138K Logic Elements) |
|---|---|
| Dimensions | 106.9 mm x 68.58 mm |
| Onboard Programmer | USB-Blaster III via USB Type-C connector |
| Configuration Mode | Supports ASx4 mode with 128 Mbit QSPI Flash |
| Cooling Solution | Active heatsink |
FPGA Side
| LPDDR4 | 1GB LPDDR4 with 32-bit data bus. Data Rate: 2666 MT/s (Rev. B) / 2133 MT/s (Rev. A) |
|---|---|
| SDRAM | 128MB SDRAM with 16-bit data bus |
| HDMI Output | Supports up to 1080p resolution |
| Camera Interface | One MIPI connector with 2 data lanes |
| ADC | 8-channel ADC with 2×5 header |
| GPIO Headers | Two 3.3V 2×20 DE-GPIO headers |
| User Interface | 8 user LEDs, 2 buttons, 4 slide switches |
| UART Port | 2-pin UART via Type-C connector |
| Thermal Management | Integrated temperature sensor and fan controller |
HPS Side
| MicroSD Socket | Yes |
|---|---|
| LPDDR4 Memory | 1 GB LPDDR4 with 32-bit data bus (shared with FPGA). Data Rate: 2133 MT/s. |
| Ethernet | Gigabit Ethernet PHY with RJ45 port |
| USB Port | One USB 2.0 port via Type-C connector |
| UART Interface | UART to USB via Type-C connector |
| Sensor | Integrated accelerometer |
| User Interface | 1 LED, 1 button, and 1 cold reset button |
Software Support
| FPGA Example Code | Supported |
|---|---|
| Linux BSP | Supported |
Block Diagram
Connection to 2x20 GPIO Daugher Card
Connect to LT24
Connect to MTL2
Connect to D8M
Connect to SMK
Connect to RFS2
Board Layout
Board Size

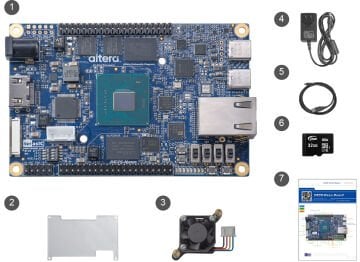

Kit Contents
- DE25-Nano Board
- Acrylic (Installed)
- Active Heatsink (Installed)
- 5V 4W Power Supply
- USB Type-C Cable
- MicroSD Card (Installed)
- Quick Start Guide
Documents
| Title | Version | Size | Date | Download |
|---|---|---|---|---|
| Build Linux image from scratch | 2025-11-26 | |||
| DE25-Nano User Manual (revB) | 1.1 | 5,432(KB) | 2025-11-10 | |
| DE25-Nano User Manual (revA) | 1.0 | 4,884(KB) | 2025-09-23 |
Resource Packages
| Title | Version | Size | Date | Download |
|---|---|---|---|---|
| DE25-Nano Resource Package (revB) | 1.0.0 | 2025-11-10 | ||
| DE25-Nano Resource Package (revA) | 1.0.0 | 2025-09-23 |
