Stok Kodu : 6002-410-039
GPSDO for USRP X Series
120.926,52 TL
GPSDO for USRP X Series

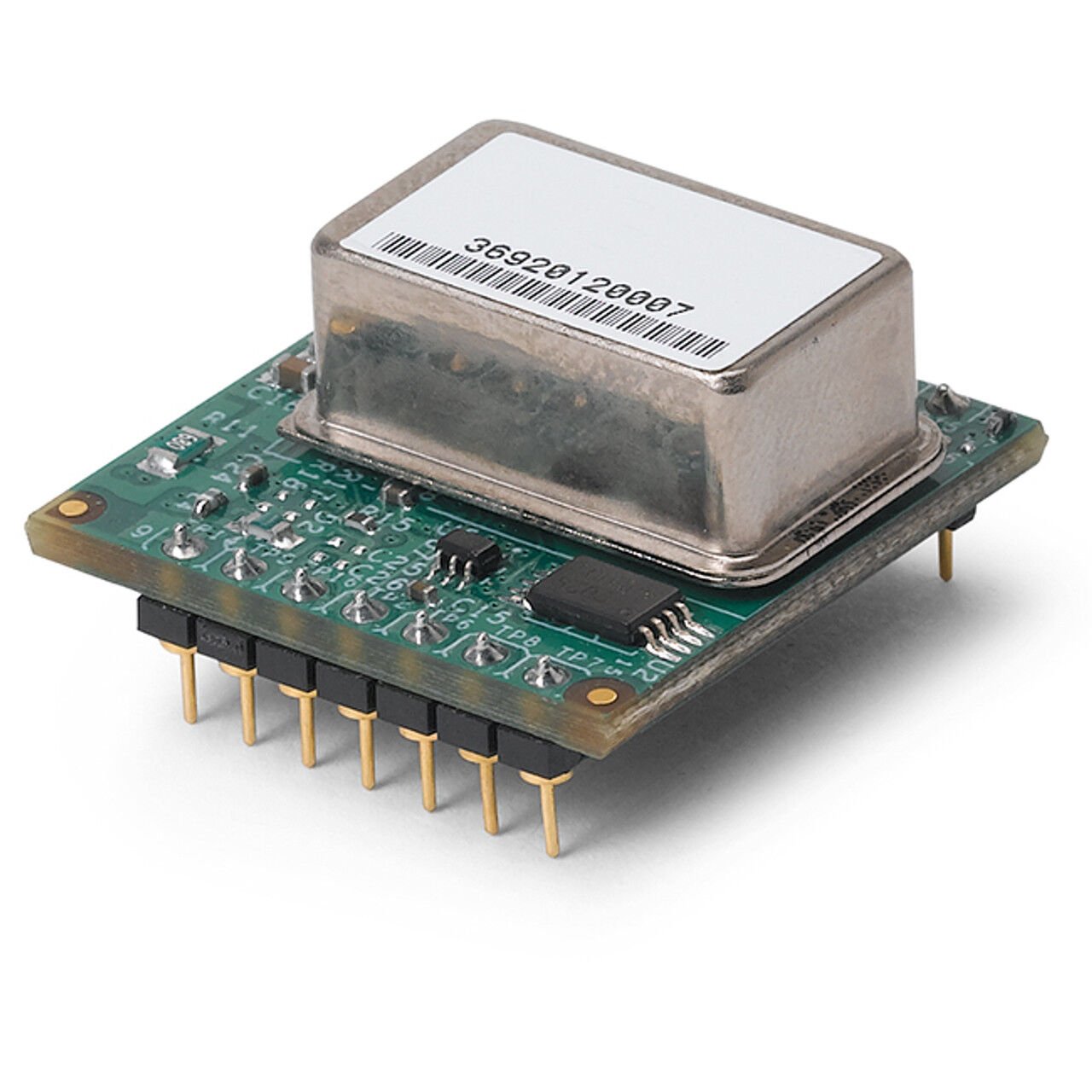

GPSDO for USRP X Series (PCB-Mounted GPS-Disciplined OCXO)
This is a GPS-disciplined, oven-controlled crystal oscillator (GPSDO), which is compatible with a USRP X300 or X310. It can also be used with the USRP B200/B210, but the system will require external power. The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal, which allow developers to build systems that serve applications with improved frequency accuracy and global timing alignment.
What's Included
- Board-Mounted GPSDO (OCXO)
- Documentation for Installation and Configuration/Setup
Recommended for use with:
- A USRP X300 and USRP X310 for a high-accuracy clock reference
- Add a GPSDO Mini GPS Antenna to synchronize the GPSDO to the GPS constellation for 25 ppb frequency accuracy and 50 ns alignment across the globe
Features
Module Specifications
- ADEV: 1E-11 at 1 sec
- Warm Up Time / Stabilization Time: <5 min at +25°C to 1E-08 Accuracy
- Supply Voltage (Vdd): 3.3/5 VDC
- Power Consumption: 0.7 W Max
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -45°C to 85°C
Oscillator Specifications:
- Frequency Output: 10 MHz
- 10 MHz Retrace: ±2E-08 after 1 hour at 25°C
- Frequency Stability Over Temperature (Unlock Condition): ±2.5E-08
- Warm Up Time: < 1 min at +25°C
- Phase Noise at 10 MHz:
-
- 1 Hz: -75 dBc/Hz
- 10 Hz: -110 dBc/Hz
- 100 Hz: -132 dBc/Hz
- 1 kHz: -142 dBc/Hz
- 10 kHz: <-145 dBc/Hz
Quickly find what you need to get started and reduce mean time to blink.
All product support including documentation, projects, and reference material can be accessed through Ettus resources.
