Stok Kodu : A.03.02.04

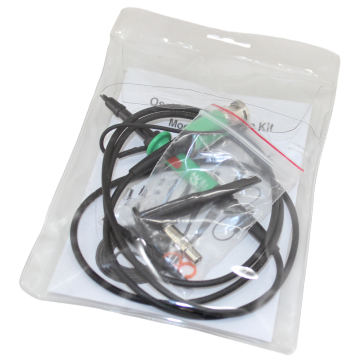

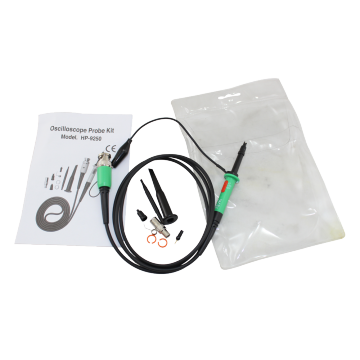

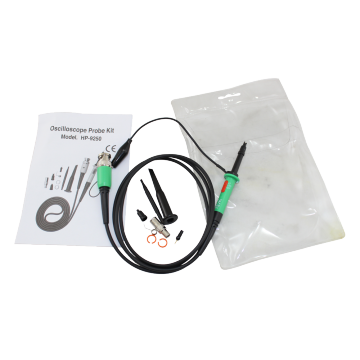

HP-9250 250MHz Osiloskop Probu
1.474,48 TL
|
Oscilloscope Probe 1:1-1:10 - HP-9250 - Specification |
|
| Max. input voltage | |
|---|---|
| 1:1 | 300 V CAT I / 150 V CAT II (DC + peak AC), derating with frequency |
| 1:10 | 600 V CAT I / 300 V CAT II (DC + peak AC), derating with frequency |
| Input resistance | |
| 1:1 | 0 plus 1 MOhm oscilloscope input resistance |
| 1:10 | 9 MOhm ± 1 % plus 1 MOhm oscilloscope input impedance |
| Input capacitance | |
| 1:1 | 47 pF plus oscilloscope input capacitance |
| 1:10 | Approx. 17 pF |
| Bandwidth | |
| 1:1 | DC to 6 MHz |
| 1:10 | DC to 250 MHz |
| Rise time | |
| 1:1 | 58 ns |
| 1:10 | 1.4 ns |
| Compensating range | 10 to 35 pF |
| Cable length | 1.2 m (47 inch) |

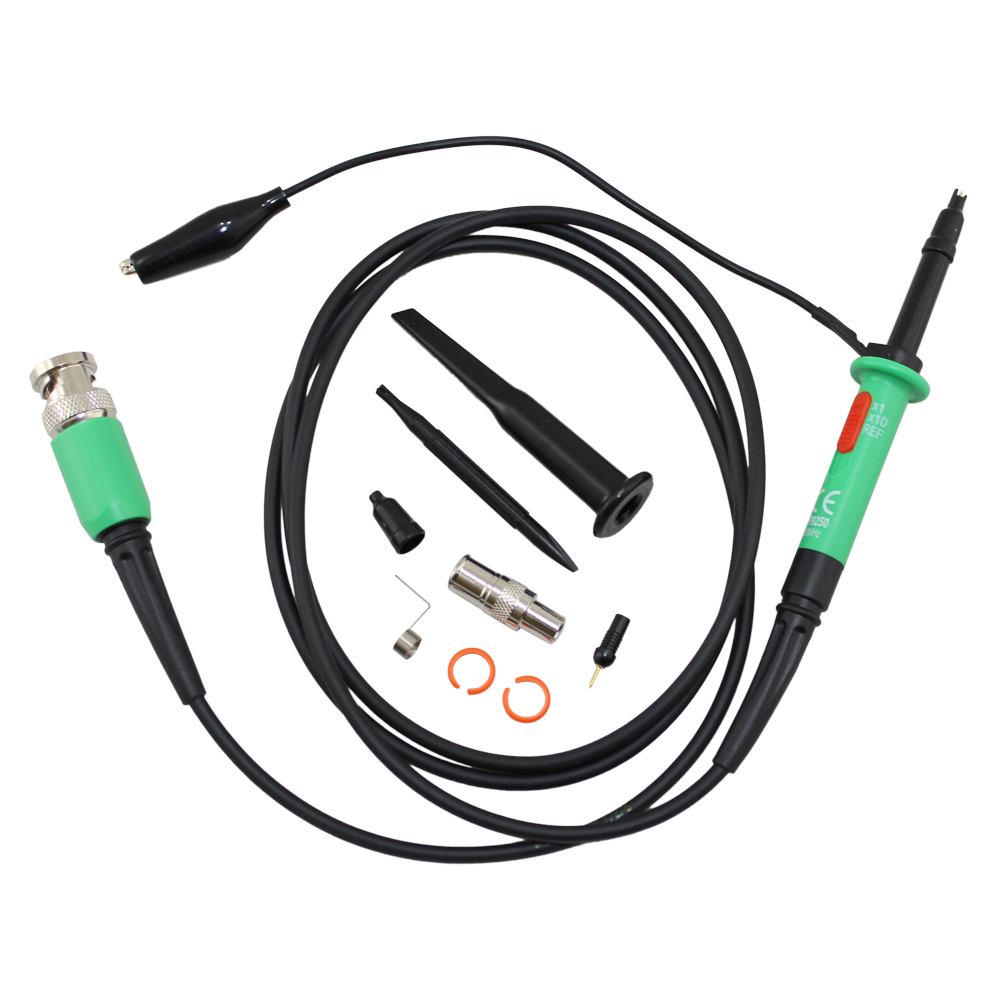

| Accessories | Channel identifier clip Sprung hook Ground lead Insulating tip IC tip Adjusting tool Measuring tip Sprung earth tip BNC adapter |
