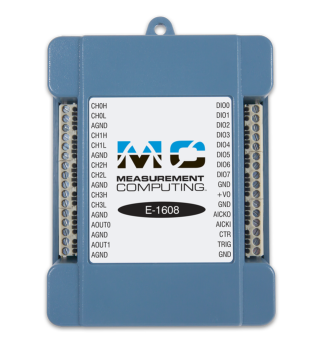

MCC E-1608 Multifunction Ethernet DAQ Device
The Measurement Computing E-1608 is an ethernet-based DAQ device and features 8 SE/4 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, two 16-bit analog outputs, eight digital I/O, and one 32-bit counter input. The device supports input ranges of ±10 V, ±5 V, ±2 V, and ±1 V that are software-selectable per channel.
The E-1608 has a built-in 10/100 BASE-T auto-negotiation, high-speed communication port. The networking protocols are TCP/IP and UDP. Once connected to the network, the device can be remotely accessed and configured through software from anywhere on the network. Only one user at a time can access the E-1608. Software is required to actively communicate with the E-1608 over Ethernet. The device does not operate as a standalone data logger. The device is externally powered via an included power supply.
The E-1608 has two 16-bit, software-paced analog outputs that can be updated at a rate of 500 S/s. The output range is fixed at ±10 V.
The E-1608 has an external digital trigger input. The trigger mode is software-selectable for edge- or level-sensitive mode. Edge-sensitive mode can be configured for either rising or falling edge. Level-sensitive mode can be configured for either high or low level. The default setting at power up is edge-sensitive, rising edge.
Eight bidirectional digital I/O bits are individually-configurable for input or output. The digital I/O terminals can detect the state of any TTL-level input. Bits can be configured for pull-up (+5V) or pull-down (0 V) with an onboard jumper.
One 32-bit event counter can count TTL pulses. The counter accepts inputs of up to 10 MHz. The E-1608 has one external clock input and one clock output for analog inputs.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.
Features
- 8 SE/4 DIFF analog inputs
- 16-bit resolution
- 250 kS/s sample rate
- ±10 V, ±5 V ±2 V, ±1 V input ranges
- Eight digital I/O
- Two 16-bit analog outputs
- One Timer output
- Power Supply 5 VDC included.

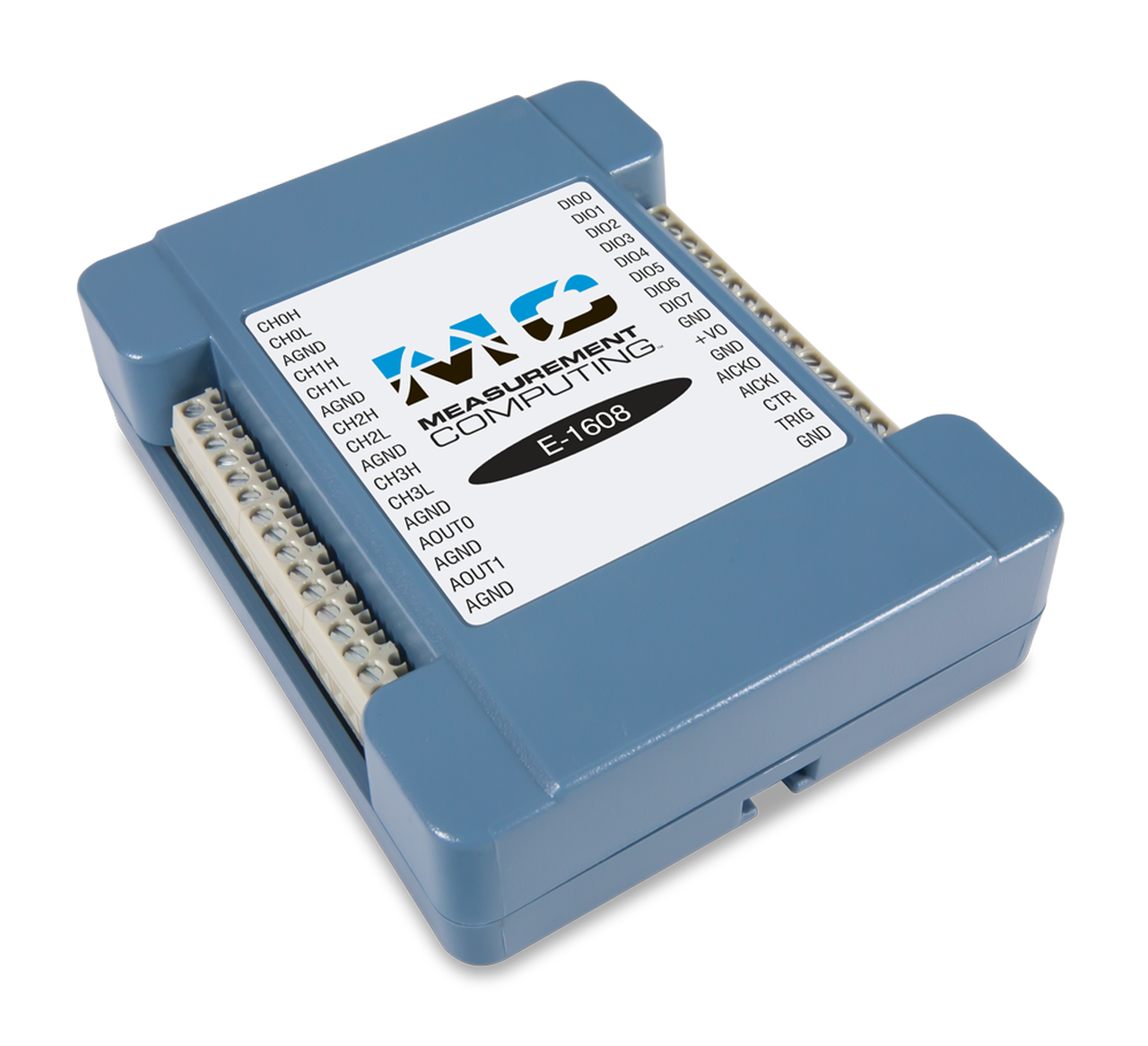

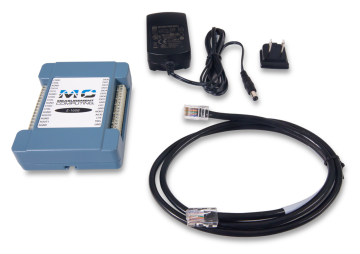

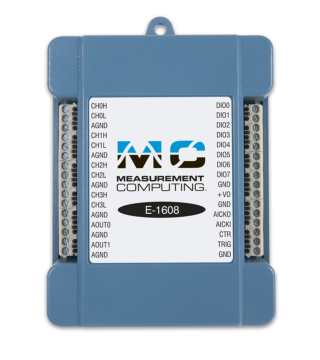

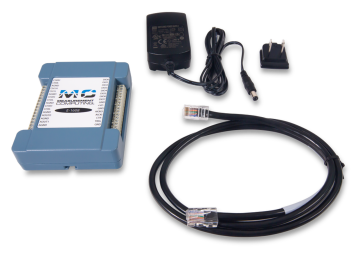

- Ethernet cable (1mt) is included
