MCC USB-1208HS-4AO DAQ

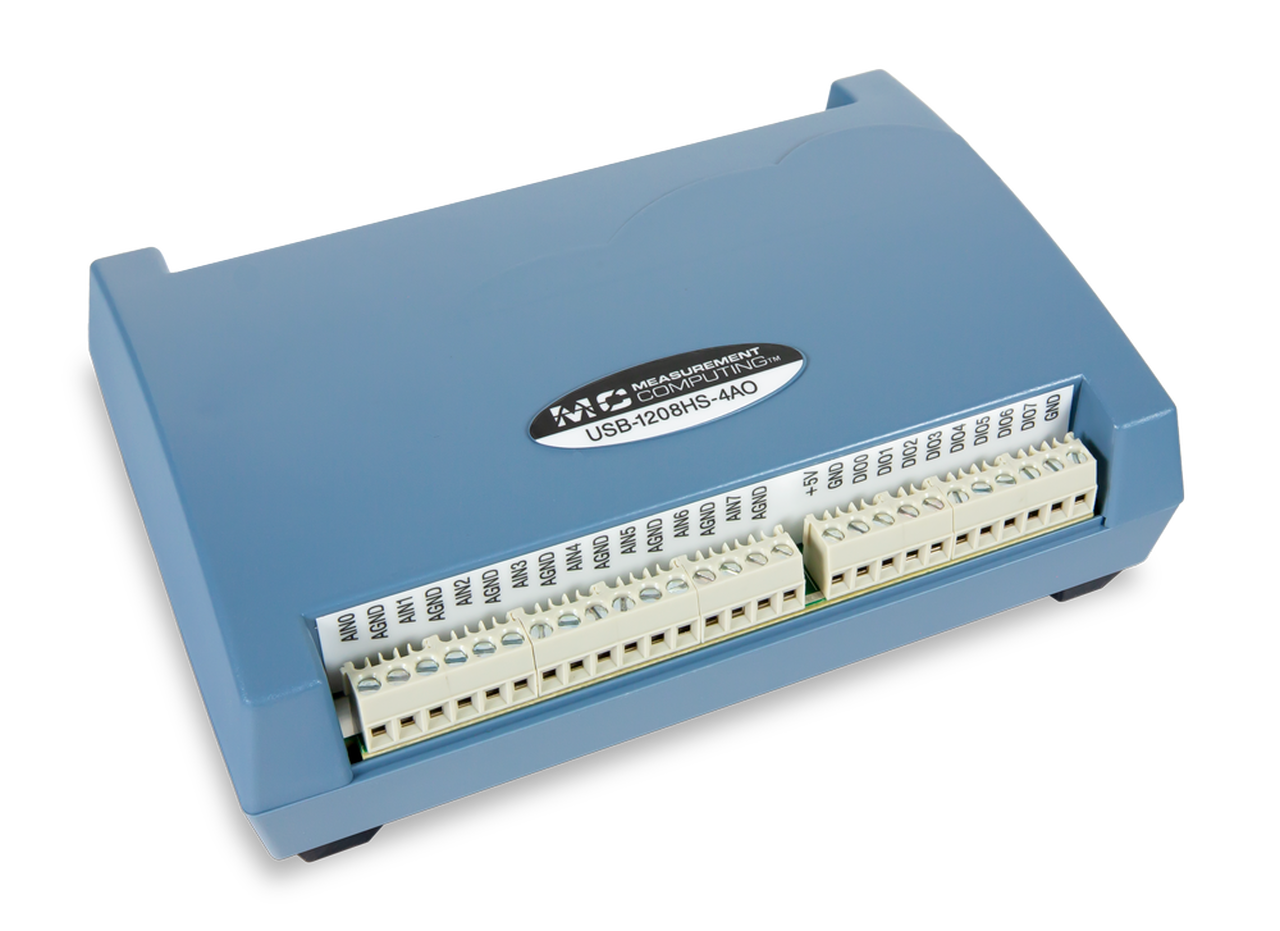

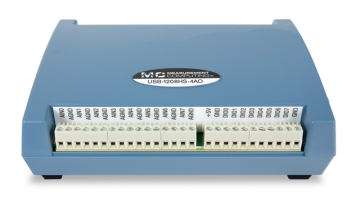

MCC USB-1208HS-4AO USB DAQ Device
The Measurement Computing USB-1208HS-4AO is a USB-based high-speed DAQ device and features 8 SE/4 DIFF analog inputs, 13-bit resolution, 1 MS/s sample rate, up to four analog outputs, 16 digital I/O, and one 32-bit counter. This device supports software‑selectable ranges from ±5 V to ±20 V in differential mode, and software‑selectable ranges from ±2.5 V to ±10 V, and 0 V to 10 V in single-ended mode. This device is USB-powered and requires no external power.
The USB-1208HS-4AO provides four 12-bit analog outputs. The output range is ±10 V. Each output can update at a maximum rate of 1 MS/s.
The USB-1208HS-4AO has an external clock input terminal that supports input signals up to 1 MHz to pace A/D conversions from an external source. Also included is an external clock input terminal that supports input signals up to 1MHz to pace D/A conversions from an external source.
Users can program each of the 16 TTL-level digital I/O lines for either input or output.
The device supports two 32-bit TTL-level counters that accept frequency inputs of up to 20 MHz.
The USB-1208HS-4AO include a pulse width modulation (PWM) timer output with a software-selectable frequency range up to 20 MHz.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, and Python™.
Features
8 SE/4 DIFF analog inputs
13-bit resolution
1 MS/s sample rate
±20 V, ±10 V, ±5 V ±2,5 V, 0-10 V input ranges
Four 12-bit analog output
16 digital I/O
Two counter input
One timer output
No external power required.

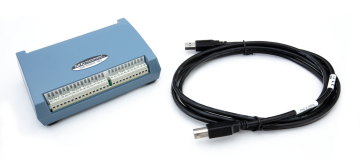

USB cable is included
