Stok Kodu : 250.07.01
Microphone AMP Board
840,51 TL
Kategori
Fiyat
16,50 USD + KDV

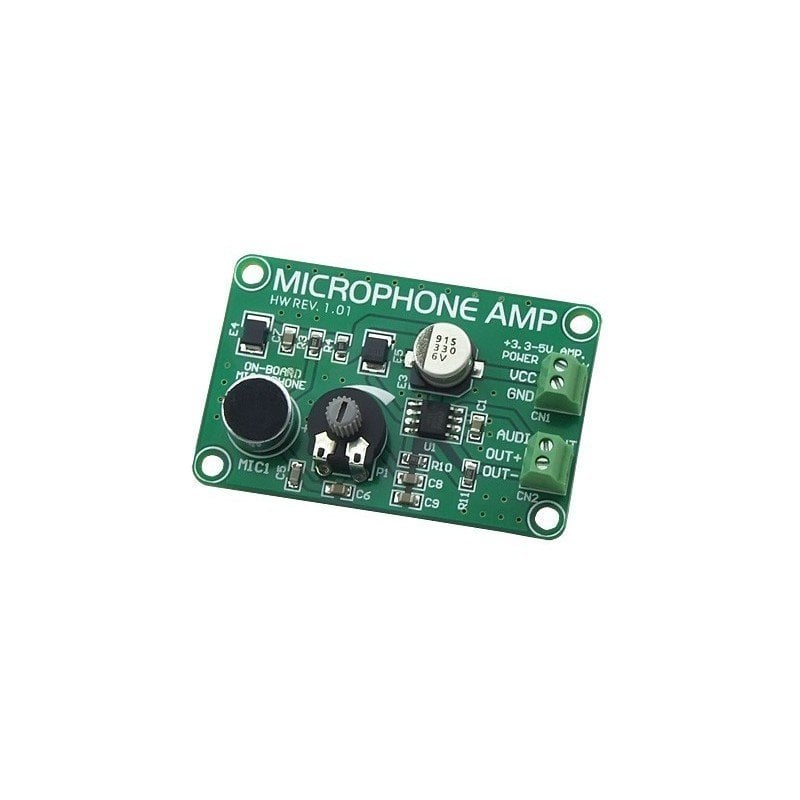

Microphone AMP Board
The Microphone AMP Board features a microphone connected to a power amplifier LM4864 designed for use in low-voltage consumer applications. The gain is internally set to 20 in order to keep external part count low, but the addition of a potentiometer and capacitor between pins 1 and 8 will increase the gain up to 200.
| Type | Microphone | |
| Applications | Board is a great choice for general purpose audio applications, cellular phones, personal computers and other | |
| On-board modules | Power amplifier LM4864, potentiometer | |
| Key Features | Thermal Shutdown Protection Circuitry, External Gain Configuration Capability | |
| Key Benefits | Small footprint, compact design | |
| Input Voltage | 5V | |
| Compatibility | Other |
