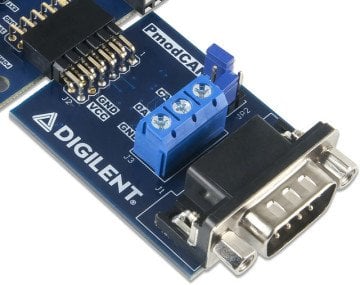

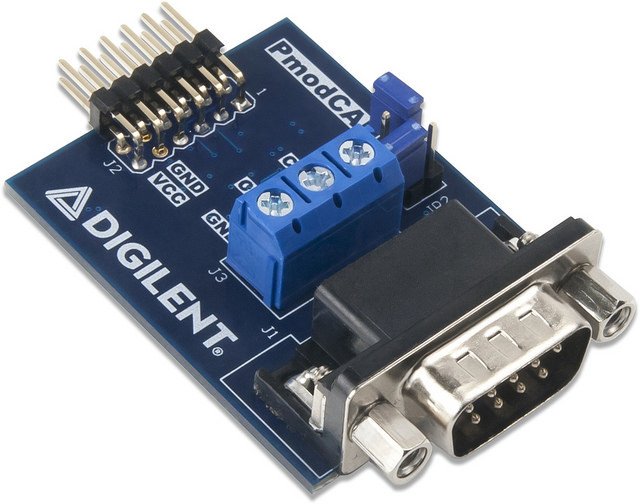

Pmod CAN

Pmod CAN

CAN 2.0B CONTROLLER with INTEGRATED

P/N:410-353

The Digilent Pmod CAN is a CAN 2.0B controller with an integrated transceiver. The embedded  Microchip MCP25625  chip connects directly to the physical CAN bus and meets automotive requirements for high-speed (1 Mb/s), low quiescent current, electromagnetic compatibility, and electrostatic discharge. The Pmod CAN enables CAN communication between a variety of external devices and microcontroller and field programmable gate array (FPGA) development boards. With libraries and example codes, users can easily interface Pmod CAN with Digilent Basys Mx3, PIC 32 microcontroller board and a range of Digilent FPGA boards featuring Xilinx 7 series FPGA device as well as Arduino boards

ÖZELLİKLERİ:

• CAN 2.0B controller with integrated transceiver

• Up to 1 Mb/s operation

• Up to 10 MHz SPI clock speed

• Standard DB9 connector for secure connection

• Small PCB size for flexible designs 1.4" × 1.8" (3.6 cm × 4.6 cm)

• 12-pin Pmod connector with SPI interface
