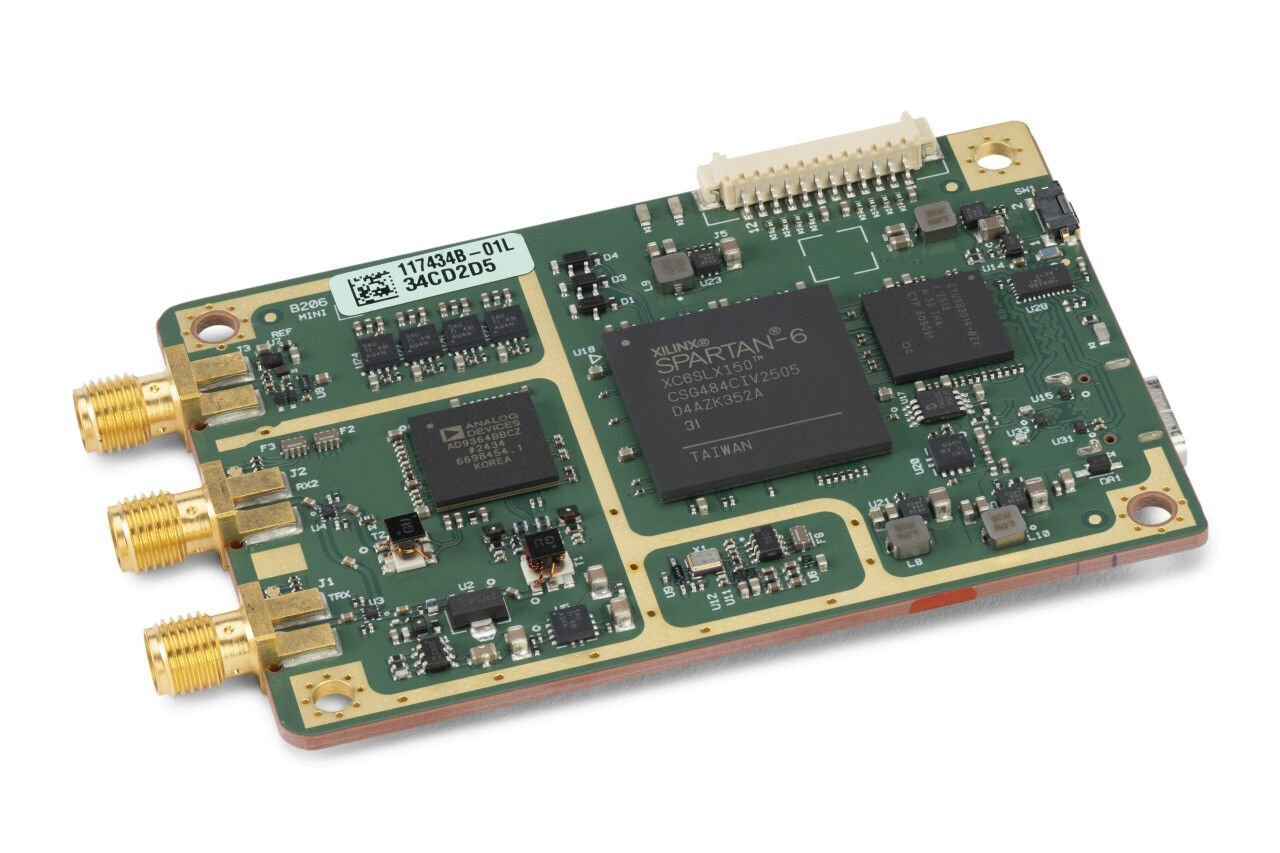

USRP B206mini-i
Ettus USRP B206mini-i
1x1, 70MHz-6GHz Software Define Radio/Cognitive Radio
The USRP B206mini-i is a flexible and compact platform that is ideal for both hobbyist and OEM applications. It is designed by NI Ettus USRP and provides a wide frequency range (70 MHz to 6 GHz) and a user-programmable, industrial-grade AMD Spartan-6 XC6SLX150 FPGA. The similar NI Ettus USRP B200mini is limited to a narrower operating temperature range and utilizes a smaller FPGA.
The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B206mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.
Experimentation with Low-cost SDR
Experiment with the USRP B206mini-i across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community. Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements.
Features
| Features | |
|---|---|
| RF Specifications |
|
| Conversion Performance and Clocks |
|
| Power |
|
| Physical |
|
| Environment |
|
| Synchronization |
|
| Product Compliance |
|
What's Included
- (P/N: 6002-410-047) Board Only
- USRP B206mini-i
- USB 3.0 cable
Software
The hardware is conveniently accessible through the USRP Hardware Driver (UHD). UHD provides both a C/C++ and Python API that supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand. UHD also offers cross-platform support for multiple industry standard development environments and frameworks, including RFNoC, LabVIEW, and MATLAB/Simulink. To ensure you have no restrictions on how you use UHD, it is available on Linux, Windows, and Mac OS. Do you prefer graphical programming? Try out GNU Radio, a free and open-source software development framework offering a graphical design approach.
Quickly find what you need to get started and reduce mean time to blink.
All product support including documentation, projects, and reference material can be accessed through Ettus resources.
Ettus Knowledge Base
